Notebook 2: Do two different protein clusters co-localize?

Download this Notebook Open in Colab

# /// script
# requires-python = ">=3.10"
# dependencies = [
#     "matplotlib",
#     "numpy",
#     "scikit-image",
#     "scipy",
#     "tifffile",
#     "imagecodecs",
#     "pandas",
#     "seaborn",
#     "bobiac_tools @ git+https://github.com/bobiac/bobiac-tools.git"
# ]
# ///

Overview

In this notebook, we will learn how to assess whether two proteins co-localize.

Dataset

Our data consists of fluorescence images with five channels:

Channel	Staining	Staining Description
0	Hoechst	Nuclear stain
1	Phalloidin	F-actin stain; whole cell marker
2	Protein A	Spot pattern
3	Protein B	Spot pattern
4	Protein C	Spot pattern

The data for this exercise is the same as used for the classic segmentation, deep learning segmentation and spot detection exercises and can be downloaded here. From the previous segmentation exercises you should have a collection of labelled masks for the cells, and coordinates for spots. If not you can download them from here.

---

0. Importing libraries

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
import skimage
import tifffile
from bobiac_tools import overlay_labels
from scipy.spatial import KDTree

---

2. Load image, mask and spot table

First, we load all the data that we will need for this notebook.

path_image = "../../../_static/images/quant/05_spatial_stats/images/F01_202_5ch.tif"
path_mask = "../../../_static/images/quant/05_spatial_stats/masks/F01_202_cell_labels.tif"
path_spots = "../../../_static/images/quant/05_spatial_stats/spots/F01_202_5ch_points.csv"

image = tifffile.imread(path_image)
mask = tifffile.imread(path_mask)
df_spots = pd.read_csv(path_spots)
df_spots = df_spots.rename({'axis-0':'channel', 'axis-1':'y','axis-2':'x'},axis=1)

mask = skimage.segmentation.clear_border(mask)

Visually inspect the images, masks and spots

To be sure that the data we are working with is corrects, we visualise it here.

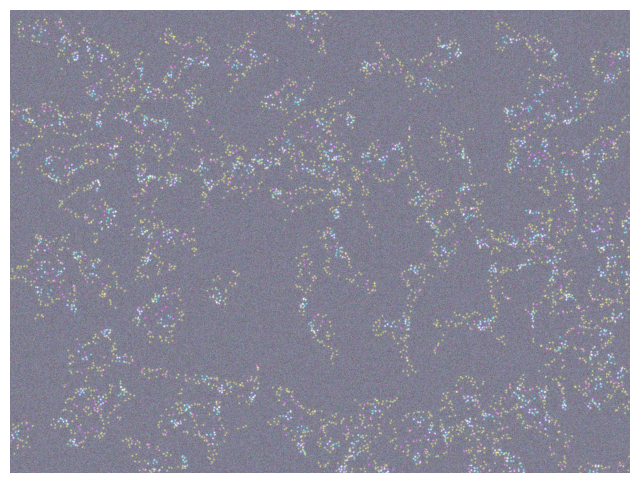

overlay_labels(image[2:, :, :])

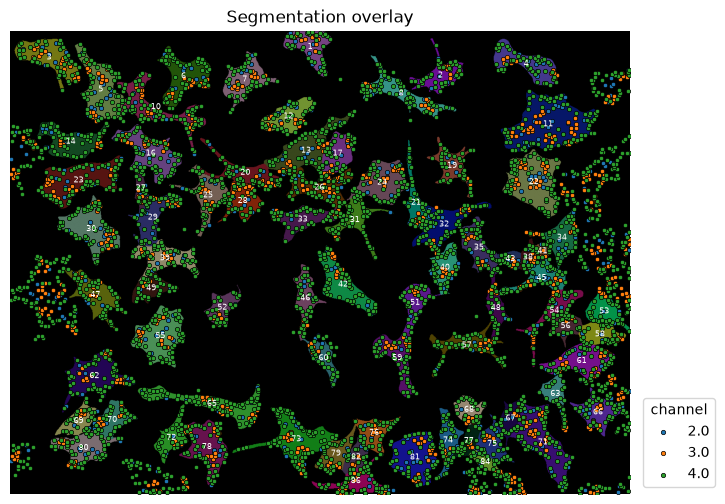

overlay_labels(label_mask=mask, coordinates=df_spots)

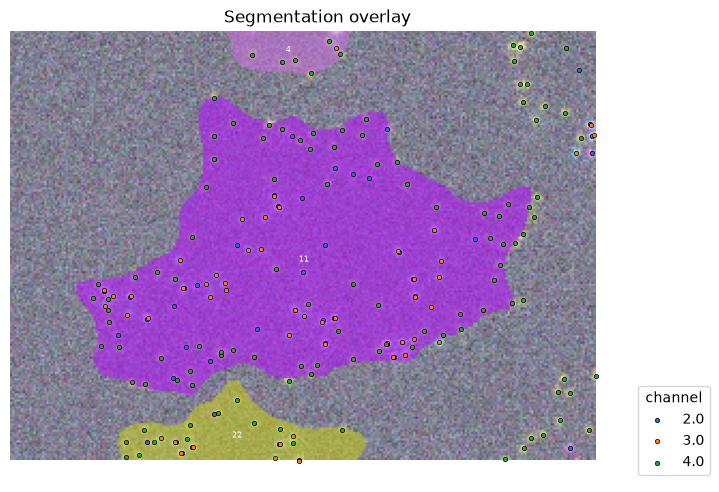

Using the focus attribute in overlay we can zoom in to view single objects.

overlay_labels(
    image=image[2:, :, :], label_mask=mask, coordinates=df_spots, focus_object=11
)

---

3. Make An Analysis Plan

Question

Do Protein A spots co-localize with Protein B spots?

Approach

Answering this question is very similar to answering the question of if spots are clustered. Instead of finding nearest neighbours for each point within its own dataset, we find the nearest neighbours of points in dataset A to points in dataset B.

Workflow

1. Generate a reference for comparison

Randomly distributed set of points inside each cell’s cytoplasm. We will call this the random dataset, which we will compare to our protein datasets.

2. Measure the nearest neighbor distance

For every spot in dataset A, identify the closest spot in dataset B and measure the distance.

3. Calculate the average nearest neighbour distance

Average the two distances across all spots in the cell.

4. Calculate the Clark-Evans Index

Calculate the ratio of the average A-B distance compared to the A-random distance. - Ratio = 1: Spots in dataset B and the spots in the random dataset are both distributed independently of spots in dataset A - Ratio < 1: Spots in dataset A co-localise with spots in dataset B - Ratio > 1: Spots in dataset A and B avoid each other

5. Calculate the p-value of the Clark-Evans Index

Calculate the p-value using a comparison of multiple random patterns.

6. Calculate the reverse direction of comparison

Measure the distance of every spot in dataset B to dataset A, then repeat the analysis. The two directions are not interchangeable. If set B is much denser than A, every A point will happen to be near some B point even at random, making A→B appear co-localized by chance. Measuring B→A guards against this: if B is merely dense everywhere rather than specifically clustering around A, most B points will still be far from A and the ratio will stay near 1. True mutual co-localization produces small ratios in both directions.

---

4. Assemble Datasets

As before we generate a DataFrame that stores information about cells df_cell and another dataframe that stores information about spots df_spots. We then map the cell label to each spot which allows us to count how many spots exist inside each cell.

df_cell = pd.DataFrame(
    skimage.measure.regionprops_table(mask, properties=["area", "label"])
)

# map the cell label to the spots
df_spots["label_cell"] = mask[df_spots["y"].astype(int), df_spots["x"].astype(int)]
# delete spots in the background
df_spots = df_spots.loc[df_spots["label_cell"] != 0]
# count number of spots per cell label
mapping_spots = (
    df_spots.loc[df_spots["channel"] == 2]["label_cell"].value_counts().reset_index()
)
# add the cell count to the cell dataframe
df_cell = df_cell.merge(
    mapping_spots, left_on="label", right_on="label_cell", how="inner"
).drop(columns="label_cell")

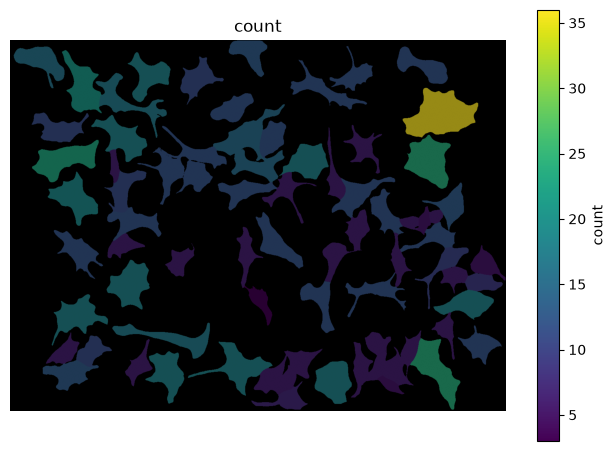

overlay_labels(label_mask=mask, df=df_cell, id_col="label", measurement_col="count")

Generate random point distribution

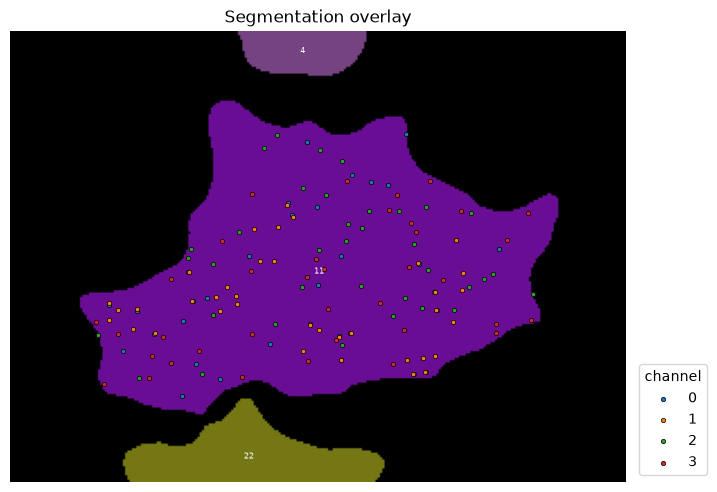

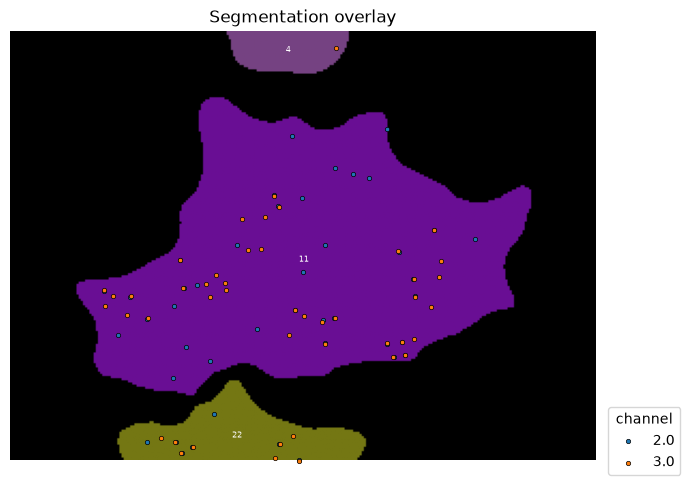

As before, we focus on one cell to illustrate the principles. First, we need to generate two random set of points, one each as a random distribution of the points of protein A and B (same number of points).

cell_id = 11
overlay_labels(
    label_mask=mask,
    coordinates=df_spots.loc[df_spots["channel"].isin([0, 1])],
    focus_object=cell_id,
)

/home/runner/work/bobiac-book/bobiac-book/.venv/lib/python3.12/site-packages/bobiac_tools/_overlay_labels.py:125: UserWarning: No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
  ax.legend(bbox_to_anchor=(1.01, 0), loc="lower left", title="channel")

# or use:
# from bobiac_tools import random_points_in_mask


def random_points_in_mask(mask: np.ndarray, cell_label: int, n: int) -> np.ndarray:
    """
    Generate n random points uniformly distributed within a labeled cell region.

    Points are placed continuously using rejection sampling:
    candidate points are drawn uniformly from the bounding box of the cell and
    accepted only if they fall within the cell mask. This correctly handles
    irregular cell shapes and serves as a null model for Complete Spatial
    Randomness (CSR).

    Parameters
    ----------
    mask : 2D numpy array
        Label mask where each cell is identified by a unique integer ID
        and background is 0.
    cell_label : int
        ID of the cell to sample within.
    n : int
        Number of random points to generate.

    Returns
    -------
    points : (n, 2) numpy array
        Random point coordinates in (row, col) / (y, x) order.
    """
    ys, xs = np.where(mask == cell_label)
    y_min, y_max = ys.min(), ys.max()
    x_min, x_max = xs.min(), xs.max()
    points = []
    while len(points) < n:
        y = np.random.uniform(y_min, y_max)
        x = np.random.uniform(x_min, x_max)
        if mask[int(round(y)), int(round(x))] == cell_label:
            points.append([y, x])
    return np.array(points)

spots_A = df_spots.loc[
    (df_spots["channel"] == 2) & (df_spots["label_cell"] == cell_id)
][["y", "x"]].to_numpy()
spots_B = df_spots.loc[
    (df_spots["channel"] == 3) & (df_spots["label_cell"] == cell_id)
][["y", "x"]].to_numpy()

n_A, n_B = spots_A.shape[0], spots_B.shape[0]

rnd_A = random_points_in_mask(mask, cell_label=cell_id, n=n_A)
rnd_B = random_points_in_mask(mask, cell_label=cell_id, n=n_B)

overlay_labels(
    label_mask=mask, coordinates=[spots_A, spots_B, rnd_A, rnd_B], focus_object=cell_id
)

Note that channel 2, 3 in this overlay are the newly generated random distributions.

---

5. Calculate Nearest Neighbour Distances

We calculate the nearest neighbour distances from

• protein A spots to protein B spots

• protein B spots to protein A spots

• protein A spots to randomised B spots

• protein B spots to randomised A spots

nn_AtoB = KDTree(spots_B).query(spots_A, k=1)[0].mean()
nn_BtoA = KDTree(spots_A).query(spots_B, k=1)[0].mean()

nn_ArndB = KDTree(rnd_B).query(spots_A, k=1)[0].mean()
nn_BrndA = KDTree(rnd_A).query(spots_B, k=1)[0].mean()

print("Mean NN dist. A->B:", nn_AtoB)
print("Mean NN dist. B->A:", nn_BtoA)
print("Mean NN dist. A->random(B):", nn_ArndB)
print("Mean NN dist. B->random(A):", nn_BrndA)

Mean NN dist. A->B: 11.124879196905919
Mean NN dist. B->A: 4.680665413094298
Mean NN dist. A->random(B): 10.721533346835596
Mean NN dist. B->random(A): 12.822945411793132

---

6. Calculate Clark-Evans Indices

Now we can calculate our Clark-Evans indices.

ce_AB = nn_AtoB / nn_ArndB
ce_BA = nn_BtoA / nn_BrndA

print("Clark-Evans index A->B:", ce_AB)
print("Clark-Evans index B->A:", ce_BA)

Clark-Evans index A->B: 1.0376201646744276
Clark-Evans index B->A: 0.3650226420514539

---

7. Repeat Steps 4-6 with Multiple Random Patterns

As before, we need to compare to multiple random patterns.

n_repeats = 100

sims_AtoB, sims_BtoA = [], []
for _ in range(n_repeats):
    rnd_A = random_points_in_mask(mask, cell_label=cell_id, n=n_A)
    rnd_B = random_points_in_mask(mask, cell_label=cell_id, n=n_B)
    sims_AtoB.append(KDTree(rnd_B).query(spots_A, k=1)[0].mean())
    sims_BtoA.append(KDTree(rnd_A).query(spots_B, k=1)[0].mean())

sims_AtoB = np.array(sims_AtoB)
sims_BtoA = np.array(sims_BtoA)

print("nn_AtoB", nn_AtoB)
print("nn_BtoA", nn_BtoA)
print("nn_random_AtoB", sims_AtoB.mean())
print("nn_random_BtoA", sims_BtoA.mean())
print("ce_AtoB", nn_AtoB / sims_AtoB.mean())
print("ce_BtoA", nn_BtoA / sims_BtoA.mean())
print("pval_AtoB", (sims_AtoB <= nn_AtoB).mean())
print("pval_BtoA", (sims_BtoA <= nn_BtoA).mean())

nn_AtoB 11.124879196905919
nn_BtoA 4.680665413094298
nn_random_AtoB 11.662236536678849
nn_random_BtoA 11.640731382400972
ce_AtoB 0.95392330295455
ce_BtoA 0.40209375676950654
pval_AtoB 0.32
pval_BtoA 0.0

---

8. Per-cell Colocalization Measurements

✍️ Exercise: Summarise the per-cell co-localisation analysis as a function

To make processing individual cells simpler, we can summarise our above analysis in a function called cross_nn. The function should have the following features:

Parameters spots_A, spots_B : (n, 2) numpy arrays Spot coordinates in (row, col) / (y, x) order. mask : 2D numpy array Label mask where each cell is identified by a unique integer ID. cell_id : int ID of the cell in mask that both spot sets belong to. n_repeats : int Number of CSR simulations to run.

Returns dict with keys: nn_AtoB, nn_BtoA : float Observed mean cross-NN distance in each direction. nn_random_AtoB, nn_random_BtoA : float Mean of simulated cross-NN distances under CSR. ce_AtoB, ce_BtoA : float Cross Clark-Evans index (observed / random). < 1 indicates co-localization, > 1 indicates avoidance. pval_AtoB, pval_BtoA : float Fraction of simulations with cross-NN <= observed. Small values indicate significant co-localization.

# or use:
# from bobiac_tools import cross_nn


def cross_nn(
    spots_A: np.ndarray,
    spots_B: np.ndarray,
    mask: np.ndarray,
    cell_id: int,
    n_repeats: int,
) -> dict[str, float]:
    """
    Test whether two sets of spots are more co-localized than expected under
    CSR using cross nearest-neighbor distances.

    For each point in A, the nearest neighbor in B is found (and vice versa).
    For the A→B direction, the null distribution holds A at its observed
    positions and randomizes only B (and vice versa for B→A) — this tests
    whether the *real* configuration of one set is closer to the other than
    a same-sized random configuration would be, controlling for the
    reference set's density without discarding the query set's real spatial
    structure.

    The two directions (A→B and B→A) can differ when the sets have different
    sizes: a small set is always close to a large one even by chance.

    Parameters
    ----------
    spots_A, spots_B : (n, 2) numpy arrays
        Spot coordinates in (row, col) / (y, x) order.
    mask : 2D numpy array
        Label mask where each cell is identified by a unique integer ID.
    cell_id : int
        ID of the cell in mask that both spot sets belong to.
    n_repeats : int
        Number of CSR simulations to run.

    Returns
    -------
    dict with keys:
        nn_AtoB, nn_BtoA : float
            Observed mean cross-NN distance in each direction.
        nn_random_AtoB, nn_random_BtoA : float
            Mean of simulated cross-NN distances under CSR.
        ce_AtoB, ce_BtoA : float
            Cross Clark-Evans index (observed / random). < 1 indicates
            co-localization, > 1 indicates avoidance.
        pval_AtoB, pval_BtoA : float
            Fraction of simulations with cross-NN <= observed.
            Small values indicate significant co-localization.
    """
    n_A, n_B = spots_A.shape[0], spots_B.shape[0]

    # observed cross-NN distances
    nn_AtoB = KDTree(spots_B).query(spots_A, k=1)[0].mean()
    nn_BtoA = KDTree(spots_A).query(spots_B, k=1)[0].mean()

    sims_AtoB, sims_BtoA = [], []
    for _ in range(n_repeats):
        rnd_A = random_points_in_mask(mask, cell_label=cell_id, n=n_A)
        rnd_B = random_points_in_mask(mask, cell_label=cell_id, n=n_B)
        sims_AtoB.append(KDTree(rnd_B).query(spots_A, k=1)[0].mean())
        sims_BtoA.append(KDTree(rnd_A).query(spots_B, k=1)[0].mean())

    sims_AtoB = np.array(sims_AtoB)
    sims_BtoA = np.array(sims_BtoA)

    return {
        "nn_AtoB": nn_AtoB,
        "nn_BtoA": nn_BtoA,
        "nn_random_AtoB": sims_AtoB.mean(),
        "nn_random_BtoA": sims_BtoA.mean(),
        "ce_AtoB": nn_AtoB / sims_AtoB.mean(),
        "ce_BtoA": nn_BtoA / sims_BtoA.mean(),
        "pval_AtoB": (sims_AtoB <= nn_AtoB).mean(),
        "pval_BtoA": (sims_BtoA <= nn_BtoA).mean(),
    }

spots_A = df_spots.loc[
    (df_spots["channel"] == 2) & (df_spots["label_cell"] == cell_id)
][["y", "x"]].to_numpy()
spots_B = df_spots.loc[
    (df_spots["channel"] == 3) & (df_spots["label_cell"] == cell_id)
][["y", "x"]].to_numpy()
print(
    cross_nn(spots_A=spots_A, spots_B=spots_B, mask=mask, cell_id=cell_id, n_repeats=10)
)

{'nn_AtoB': np.float64(11.124879196905919), 'nn_BtoA': np.float64(4.680665413094298), 'nn_random_AtoB': np.float64(12.578257760833157), 'nn_random_BtoA': np.float64(11.016166858755584), 'ce_AtoB': np.float64(0.8844531101554585), 'ce_BtoA': np.float64(0.42489056975150413), 'pval_AtoB': np.float64(0.3), 'pval_BtoA': np.float64(0.0)}

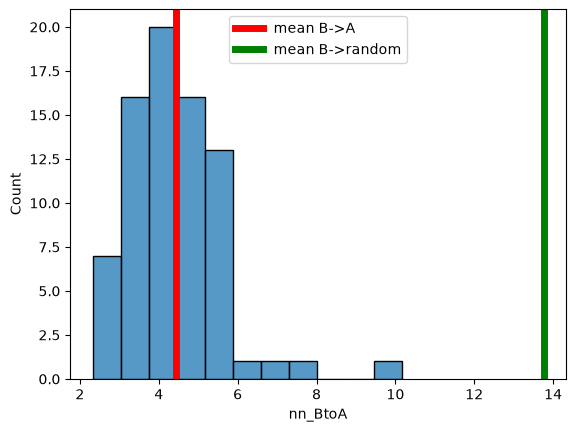

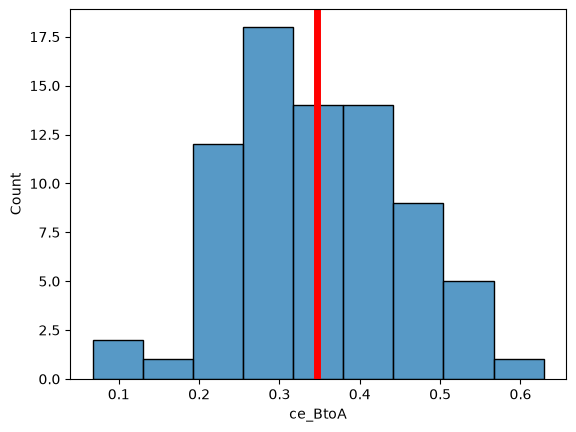

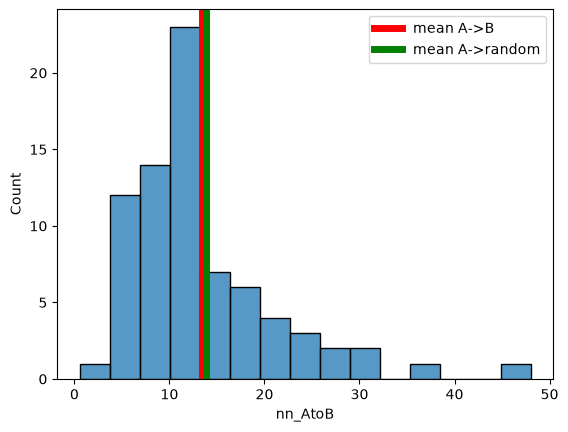

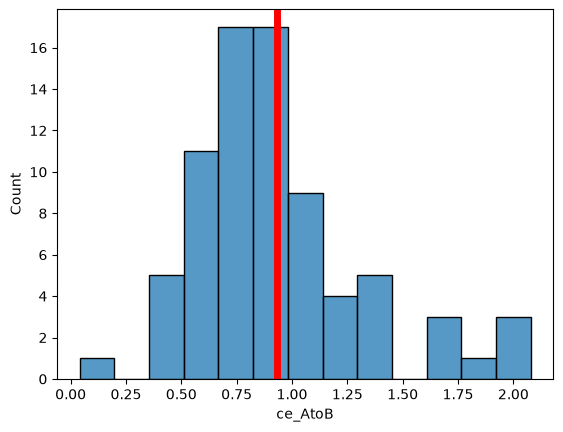

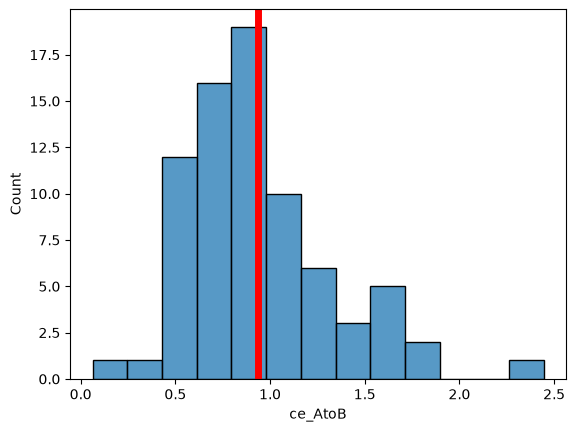

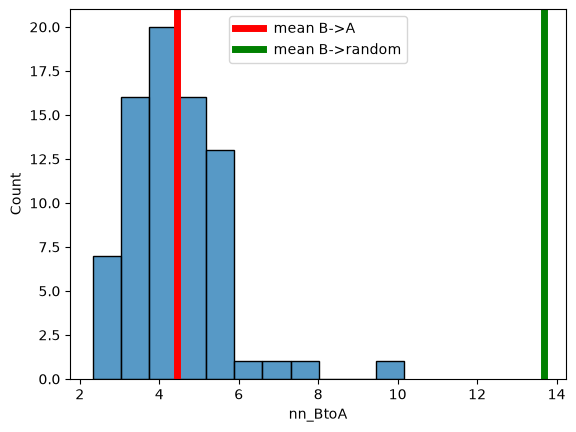

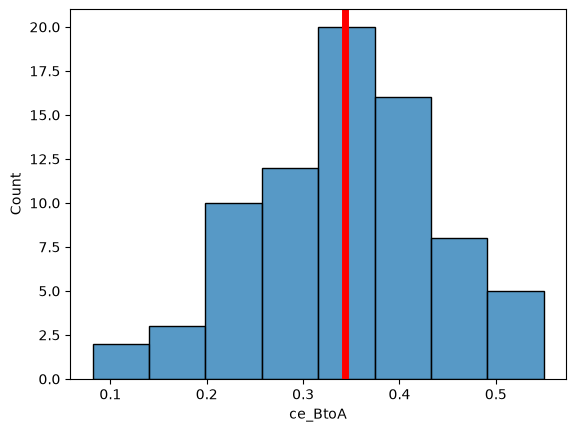

Repeat measurements for all cells

So far, we have focussed on one single cell. Of course, we need to analyse all cells.

n_repeats = 10

results = []
for cell_id in df_cell["label"].unique():
    spots_A = df_spots.loc[
        (df_spots["channel"] == 2) & (df_spots["label_cell"] == cell_id)
    ][["y", "x"]].to_numpy()
    spots_B = df_spots.loc[
        (df_spots["channel"] == 3) & (df_spots["label_cell"] == cell_id)
    ][["y", "x"]].to_numpy()

    # calculate the NN distance, Clark-Evans index and p-value for that cell
    results.append(
        cross_nn(
            spots_A=spots_A,
            spots_B=spots_B,
            mask=mask,
            cell_id=cell_id,
            n_repeats=n_repeats,
        )
    )

df_cell = pd.concat([df_cell, pd.DataFrame(results)], axis=1)
df_cell

	area	label	count	nn_AtoB	nn_BtoA	nn_random_AtoB	nn_random_BtoA	ce_AtoB	ce_BtoA	pval_AtoB	pval_BtoA
0	5634.0	1	13	9.987703	4.587394	10.998310	9.741913	0.908113	0.470893	0.3	0.0
1	4728.0	2	12	11.315666	4.536695	11.752927	11.457934	0.962796	0.395944	0.5	0.0
2	7677.0	3	16	10.701428	6.574501	12.133744	11.837484	0.881956	0.555397	0.2	0.0
3	6824.0	4	12	14.550151	5.751568	13.234779	14.127564	1.099388	0.407117	0.8	0.0
4	9638.0	5	21	10.418040	5.249208	12.332873	11.735422	0.844737	0.447296	0.2	0.0
...	...	...	...	...	...	...	...	...	...	...	...
71	6577.0	80	13	23.113667	4.380897	14.031244	14.469588	1.647300	0.302766	1.0	0.0
72	8947.0	81	18	12.037741	5.864325	11.626512	12.104993	1.035370	0.484455	0.6	0.0
73	2622.0	82	6	11.609512	4.225312	12.186160	11.056920	0.952680	0.382142	0.3	0.0
74	1669.0	84	5	23.604008	2.325054	17.177756	21.689268	1.374103	0.107198	1.0	0.0
75	4207.0	86	7	9.356042	4.356451	15.293694	15.137889	0.611758	0.287785	0.1	0.0

76 rows × 11 columns

sns.histplot(
    df_cell,
    x="nn_AtoB",
)
plt.axvline(df_cell["nn_AtoB"].mean(), c="red", lw=5, label="mean A->B")
plt.axvline(df_cell["nn_random_AtoB"].mean(), c="green", lw=5, label="mean A->random")
plt.legend()

<matplotlib.legend.Legend at 0x7faf26a321b0>

sns.histplot(
    df_cell,
    x="nn_BtoA",
)
plt.axvline(df_cell["nn_BtoA"].mean(), c="red", lw=5, label="mean B->A")
plt.axvline(df_cell["nn_random_BtoA"].mean(), c="green", lw=5, label="mean B->random")
plt.legend()

<matplotlib.legend.Legend at 0x7faf24934fb0>

sns.histplot(
    df_cell,
    x="ce_AtoB",
)
plt.axvline(df_cell["ce_AtoB"].mean(), c="red", lw=5)

<matplotlib.lines.Line2D at 0x7faf246ff560>

sns.histplot(
    df_cell,
    x="ce_BtoA",
)
plt.axvline(df_cell["ce_BtoA"].mean(), c="red", lw=5)

<matplotlib.lines.Line2D at 0x7faf269c3cb0>

Interpretation: Protein B assocciates with A but not vice versa.

Conclusion

Here we have learned how to assess if two point patterns co-localise more than expected by random chance. Note that:

• The distance metric (distance to nearest neighbor) was a choice and could have been replaced with e.g. distance to the k nearest neighbors, number of spots in a certain radius or others.

• Using a complete spatially random pattern as null distribution was a choice. We could have e.g. randomised the labels between A and B.

• The formalism used to define spatial relationships (KDTree) was a choice. Other options exist.

All these choices need to be made with your scientific question in mind.

Moreover, other techniques for assessing co-localisation exist such as:

• Spatial cross-correlation: Takes into account expression levels

• Ripleys L for cross correlation: Reports on clustering length scales
